> Lecteur CPS - Carte Santé > LKN600

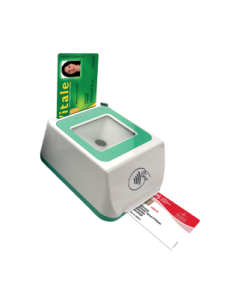

LKN600

127,50 € HT

Référence LKN600

Marque : ADI

Lecteur santé bi-fente PC/SC + NFC + QR Code + ISO2

LKN600 - Lecteur santé bi-fente PC/SC + NFC + QR Code + ISO2

Les lecteurs 4 en 1 LKN600 et LKN700 permettent la lecture des cartes CPS et Vitale, des codes e-Vitale en QR code et sans contact ainsi que les Datamatrix des mutuelles, médicaments et ordonnances. Avec le LKN700, la carte CPS est dissimulée dans le boîtier.

- Compatible Mac et Windows
- Garantie 2 ans

Voir le référencement SESAM VITALE

Spécification technique
Power Supply USB Bus / DC: +5V±10% 500mA.
Consumption Current/operating Typical 500mA Max
150mA Standby
Physical Dimensions Product Dimensions：L106.5*W90*H57 mm
Box Dimensions：L120*W100*H70 mm
Weight Net weight: 350g. Gross weight: 500g
Temperature Operation: -0ºC to 45ºC; Storage: -10ºC to 60ºC
Humidity Operation: 10 to 85%; Storage: 10 to 90%, Non-Condensing.
QR Code Scanning Feature
Image sensor 640H * 480V 30fps
Field of view angle Horizontal: 65° Diagonal: 81° Vertical: 61°
Deflection angle Horizontal: ±50° Vertical: ±50°Whirling: 360°
Motion tolerance 3m/s
Code system support 2D： PDF417/QR Code/Data Matrix/Royal Mail Cmdm Mailmark / PPN / Swiss QR Code
  1D： Code128 / Code32 / Code 39 / Code 9 3/ EAN 13 / EAN 8 / EAN / UCC128 / ISBN13/ ISMN / ISSN / Logmars / NVE18 / PZN7 / PZN8 /
service-id / SSCC 18 / UPC 12 / UPCA / DPD / UPU S10 / Swedish Postal Shipment ItemID
Read Rate 50ms
Recognition Accuracy: 5mil
Contrast ≥25%
Reading mode Trigger / Sensing / Continuous
Reading material Screen / Paper / Metal / PVC film
Ambient light 0~100,000LUX
Interface Mode 1 ：RS232：9600 Baud, None Parity, 8 bits
Mode 2 ：USB HID Keyboard (default).
Mode 3 ：USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits
Magnetic stripe card
Standard Comply with ISO7811 Standard
Tracks Track 1,Track 2,Track 3
Card Specifications Support Hi-Co & Lo-Co，All compatible (300~4000 oe)。
Card swiping speed Support 10~100cm/s
Head Life >500,000 times
Contact IC Card 1
Standard Comply with ISO7816 / PBOC 3.0
Fully compliant with EMV2000 Level 1 / Compliant with most EMV2000 Level 2
Card Voltage 5V / 3.3V / 1.8V.selecting the nominal card supply voltage according to ISO/IEC7816-3.
Protocol T=0 / T=1
IC Holder 8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 300,000 times
Communication rate 9600bps~38400bps, support PPS
Protection short-circuit protection
Contact IC Card 2
Standard Comply with ISO7816 / PBOC 3.0
Fully compliant with EMV2000 Level 1 / Compliant with most EMV2000 Level 2
Card Voltage 5V / 3.3V / 1.8V.selecting the nominal card supply voltage according to ISO/IEC7816-3.
Protocol T=0 / T=1
IC Holder 8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 300,000 times
Communication rate 9600bps~115200bps, support PPS
Protection short-circuit protection
Contactless IC
Standard Comply with ISO14443TYPE-A&B /PBOC 3.0
Fully compliant with EMV2000 Level 1 / Compliant with most EMV2000 Level 2
Support Card Smart CPU Card / Mifare one 1K / 4K
Protocol T = CL
Frequency 13.56MHz
Effective range 0~50mm
Communication rate 106K/212K/424K bps, support PPS
PSAM card
Standard Comply with ISO7816 / PBOC 3.0/The physical interface conforms to the GSM11.11 specification
Voltage
 3.3V
Protocol T=0 / T=1
Holder
8 contacts, Holder life: > 5,000 times


Votre tarif dégressif

Par 1 : 127,50 € HT / unité
Par 5 : 125,50 € HT / unité
Par 10 : 122,50 € HT / unité
Par 50 : 122,00 € HT / unité
Par 100 : 121,00 € HT / unité
