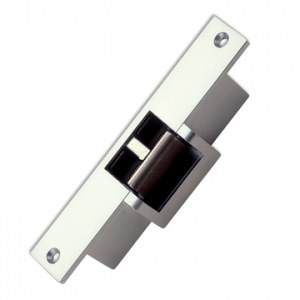

PG-703 - Gâche électrique 12V/24V

59,00 HT

Référence PGS-703-12V

 Product Description

•Fail secured type(Released as energized)

•Operation Pair with mortise type dead bolt mechanical lock or cylindrical lock.

•Could be continuously energized.

•With door monitoring switch.

•For heavy duty door.

•Application: For aluminum, steel, wooden or brass door .



Specifications

•Lock size (mm): 150(L) x 25(W) x 32(D)

•Approx. weight: 430g

•Nominal voltage: DC12V / DC 24V

•Standby current: 0mA

•Working current:120mA(12V) / 60mA(24V)

•Voltage tolerance:10%

•Temp. range: -20 ℃ ~ 70 ℃

•Power consumption:1.5W

•Pair with MK-738 mortise type dead bolt mechanical lock

•Material: Zinc alloy



Ordering information

PGS-703:  Fail Secured Type Electric Strike, 12V

PGS-703-24V:  Fail Secured Type Electric Strike, 24V
